District heating insulating joints

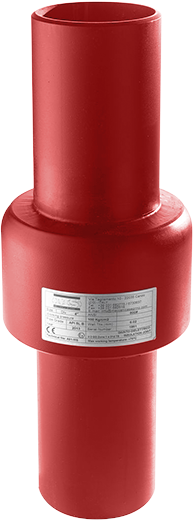

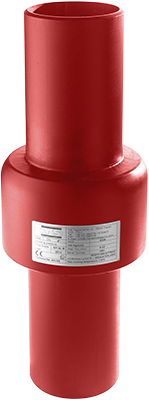

Insulating joints for district heating are installed on complex, in ground installed pipesystems that convey high temperature fluids. Insulating joints for district heating have mechanical features that differ from other insulating joints: insulating components (ring, spacer and gasket) are made up with materials that can hold temperatures up to 140°C and pressure up to 20 bar.

District heating is a system for distributing heat generated in a centralized location for residential and commercial heating requirements such as space heating and water heating. For the transport of district heating energy a complex, in ground installed pipesystem is required that convey hot water from the central pump to the houses.

Design temperature	Electric resistance in air	Dielectric test a.c.	Dielectric strength a.c.	Design pressure	Test Pressure
-10°C+140°C	>100 Mohm	3,5 KV	>10 KV	25 bar	38 bar

Send an email to the Sales Office to get additional information.

Download technical sheetspec class_tlr_en

The dimensions reported in the table are in millimeters (mm)

Item ID	ND**	A	S	E	B	C	L	weight (kg)
P020HT	3/4"	26,7	3,91	65	60	95	250	1,50
P025HT	1"	33,4	3,38	68	64	93	250	1,70
P032HT	1" 1/4	42,2	3,56	82	70	115	300	2,60
P040HT	1" 1/2	48,3	3,68	94	74	113	300	3,5
P050HT	2"	60,3	3,91	95	50	125	300	2,8
P065HT	2" 1/2	76,1	5,00	114	52	139	330	4,5
P080HT	3"	88,9	5,00	127	56	172	400	5
P100HT	4"	114,3	5,00	153	64	168	400	8
P125HT	5"	141,3	4,78	192	74	213	500	14
P150HT	6"	168,3	5,60	219	80	210	500	18
P200HT	8"	219,1	6,35	273	90	205	500	28
P250HT	10"	273,0	6,35	329	132	284	700	50
P300HT	12"	323,9	6,35	378	138	281	700	60

** ND>12" or higher Nominal Pressure are available on request

MECHANICAL FEATURES

Pup ends: Steel API 5L/EN 10208-2 or equivalent

Central body: Steel ASTM A 105-E355 or equivalent

Pup ends to be welded : Steel API 5L/EN 10208-2, Bevels = 30° +5/-0

Certificates issued: EN 10204 3.1 and CE compliance

Il 2 GD Zone 1 e 21 d T5 Technical file: A01-MS
